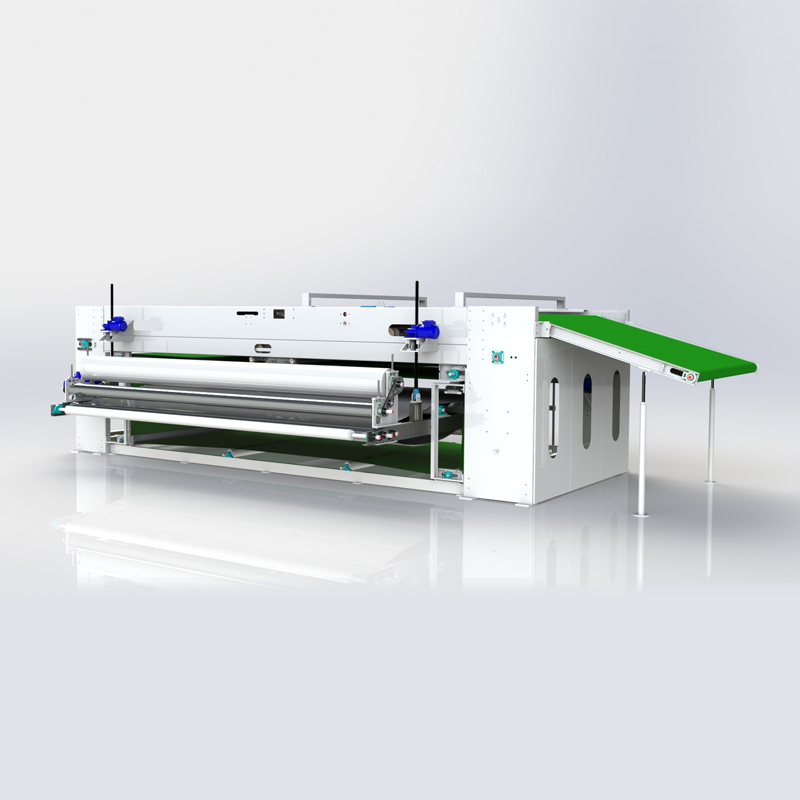

Ø The web after the carding machine is evenly cross-folded and laid to the required width and thickness, and then conveyed to the next process. This critical phase of nonwoven production dictates the final fabric's structural integrity and visual consistency. By employing advanced cross-lapping technology, the equipment achieves precise gram weight distribution and strict transverse profile control. This meticulous layering process effectively eliminates the common "smile effect"—an unwanted thickening at the fabric edges—ensuring exceptionally low CV (Coefficient of Variation) values and superior surface uniformity. As the delicate fiber web transitions from the carding unit, the lapper operates with a rhythmic, low-vibration hum, rapidly and gently folding the material without disrupting the fiber alignment. It supports high-speed web feeding and reciprocating laying operations, creating a smooth, continuous flow that significantly boosts the overall throughput and operational efficiency of the entire nonwoven production line.
Ø Technical Data: Inlet width:2000mm-4000mm; These expansive entry dimensions allow the machine to comfortably receive wide webs directly from high-capacity carding units, ensuring that the initial fiber structure is maintained without unwanted compression or drafting.
Width of the outlet:2000mm-10000mm. The extensive range of the outlet width provides manufacturers with the versatility needed to produce everything from narrow specialized textiles to ultra-wide industrial fabrics. The precise calibration between the inlet and outlet ensures that the transition of the fiber web remains perfectly tensioned throughout the folding phase.
Ø Main components: The main body of the frame is composed of Q235-A steel folding plate structure and precision linear guide rail; Cotton pressing rollers are installed on the inclined curtain; The net laying reciprocating trolley, the large car adopts an aluminum alloy structure, and the reciprocating speed is faster; The oblique curtain is a thin PU curtain, the bottom curtain is an encrypted aluminum alloy curtain, and the rest are thin PU curtains; The transmission adopts servo control, PLC control, man-machine interface operation. The structural foundation of this equipment is engineered for absolute stability under continuous, demanding manufacturing conditions. The high-rigidity Q235-A steel framework offers exceptional resistance to mechanical deformation, ensuring a prolonged operational lifespan even when running at maximum capacity. The integration of precision linear guide rails guarantees that the reciprocating movements remain fluid and exact, minimizing friction and mechanical wear over years of heavy usage. To optimize the handling of the delicate web, the anti-static, lightweight PU curtains and the encrypted aluminum alloy bottom curtain work in harmony to prevent fiber adhesion and static buildup. The tactile smoothness of the PU material protects the integrity of the fibers as they are continuously transported. Furthermore, the advanced transmission system, driven by highly responsive servo motors and managed through an intuitive PLC man-machine interface, delivers constant tension pneumatic control. This intelligent automation includes highly sensitive automatic deviation correction, making the operation remarkably precise, significantly reducing manual intervention, and ensuring a highly efficient workflow for floor technicians.
Beyond its core structural integrity and precise web-laying capabilities, this cross lapper is designed to deliver measurable improvements in production efficiency, material utilization, and workplace safety. By addressing the most critical challenges in nonwoven fabric manufacturing, it serves as a pivotal asset for modern production facilities aiming to optimize their operational workflows and maximize output value.
Material waste is a significant concern in large-scale textile production. This machine addresses this challenge through its highly accurate web-laying mechanism and sophisticated closed-loop control system. By maintaining strict control over the fabric's edges and preventing the uneven accumulation of fibers, the equipment drastically reduces edge trim waste. This precise material management translates directly into lower raw material consumption, significantly decreasing comprehensive production costs while maximizing the yield of premium-grade nonwoven rolls. Facility managers will notice a clear reduction in discarded fibers, directly improving the financial performance of the manufacturing process.
Consistent, round-the-clock manufacturing requires equipment that can operate flawlessly without constant manual supervision. The cross lapper is equipped with automated pressure setting protocols and an intelligent fault alarm system that instantly alerts operators to any deviations from standard parameters. The heavy-duty synchronous belt drive ensures that power is transmitted smoothly, resulting in a remarkably low-noise operational environment. This reduction in acoustic emissions not only improves the sensory experience on the factory floor but also indicates the absence of destructive mechanical vibrations, thereby safeguarding the machinery for reliable, all-weather production. Operators can confidently manage the line knowing that the built-in safety mechanisms are actively monitoring the system's health.
