Welcome to the comprehensive technical overview of our High Speed Needle Loom, a foundational piece of machinery engineered specifically for the demanding requirements of modern nonwoven fabric production. When you observe this equipment in operation on the factory floor, the steady, rhythmic hum of its mechanics speaks volumes about its structural integrity and vibration-dampening design. It is built to transform loose, unbonded fibers into tightly entangled, dense nonwoven materials that exhibit exceptional tensile strength and a remarkably uniform surface finish. Whether your production focuses on industrial filtration media, heavy-duty geotextiles, automotive interior fabrics, or premium synthetic leather substrates, this loom provides the exact mechanical entanglement required to achieve superior fabric integrity. The finished materials possess a distinct, premium tactile feel, completely free from uneven drafting marks or surface irregularities that often plague lesser equipment.

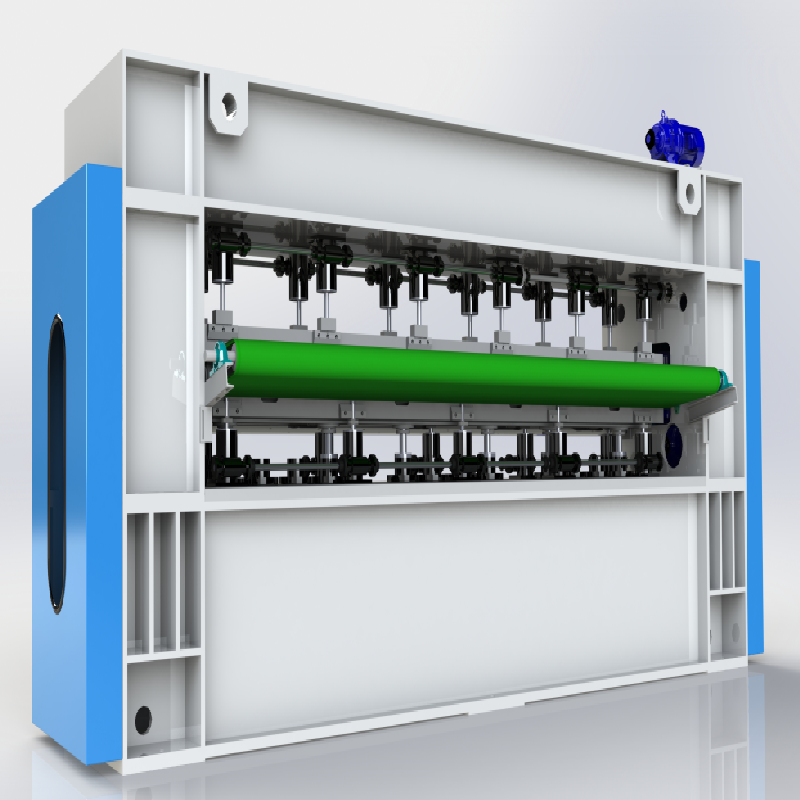

Ø The display does not exactly match the actual product
Ø It is suitable for needle punching and shaping of various fiber nets below 70D, and is an indispensable key equipment in the production of needle-punched nonwovens.
Operational efficiency is at the heart of this needle loom. By leveraging advanced frequency conversion control, the dual motors ensure a synchronized, continuous feed that maximizes daily output while minimizing energy consumption. Operating at an impressive frequency, this machine translates raw mechanical power directly into a higher return on investment for large-scale production facilities. Below are the exact technical parameters that define its performance:
Ø Technical Data: Effective width:3600mm
Stroke:70mm;
Needle frequency:500 times/min—700 times/min;
Needle density:3000-7000pcs/m;
Needle plate width: 300mm; Needle plate thickness: 18mm; Pinhole diameter: 1.83mm;
Eccentric wheel diameter: 140mm; Spindle diameter: 70mm; Spindle pulley: 320mm;
Installed power: The input and output rollers are driven by two 1.5kw motors respectively (frequency conversion control);
The longevity and continuous operational stability of any heavy industrial machinery rely fundamentally on the metallurgical composition and machining accuracy of its internal components. This loom is constructed around a heavy-duty, cast-iron mechanical body specifically designed to absorb high-frequency vibrations, ensuring a quiet and balanced operation even when running at maximum capacity. The spindle transmission mechanism and the connecting rod are forged from specialized hardened alloys, offering extraordinary resistance to mechanical wear, friction, and thermal fatigue over years of relentless, round-the-clock operation.
Ø Main components: a mechanical body, a spindle transmission mechanism, a connecting rod mechanism, a needle beam, a supporting mesh plate, a stripping mesh plate, and input and output rollers.
Beyond the basic components, the eccentric wheel and spindle are machined to microscopic tolerances, guaranteeing that the needle beam moves with absolute vertical precision. This strict verticality drastically reduces the risk of needle breakage and ensures that the supporting mesh plate and stripping mesh plate interact flawlessly with the delicate fiber web. Every single component, from the microscopic pinholes to the heavy-duty spindle pulley, undergoes rigorous dimensional and metallurgical quality inspections to guarantee an ultra-long service life and to keep your maintenance downtime to an absolute minimum.
Understanding that every production facility has unique spatial and operational requirements, we offer extensive OEM and ODM customization capabilities. Whether you are upgrading an existing production line or establishing a brand-new operation from the ground up, this high-speed needle loom can be fluidly integrated into a comprehensive Whole Plant Project. We ensure that the motorized input and output rollers synchronize perfectly with your upstream carding machines and downstream winding equipment, creating a unified, highly efficient manufacturing ecosystem.
