When processing large-scale rolls of flexible substrates, maintaining consistent tension and precise edge alignment is critical to the success of the entire production line. This industrial cutting and winding equipment is engineered specifically to handle these complex operational challenges. It efficiently processes non-woven materials, delivering clean edges without fraying, distortion, or material degradation. Operators interact with the machine through an intuitive human-machine interface (HMI), driven by an advanced programmable logic controller (PLC). This intelligent control setup allows facility managers to store multiple production recipes, enabling rapid roll changes and continuous operation without unnecessary downtime.
The hum of the servo motors and the smooth, rhythmic rotation of the winding rollers reflect the precision engineered into every moving part. By automating the tension control and edge alignment processes, facilities can drastically reduce material waste and optimize their daily output. The system integrates smoothly into existing production workflows, handling continuous feeding and precise cross-cutting with minimal manual intervention. Whether the facility is producing medical-grade textiles, agricultural covers, or industrial filtration media, this machinery adapts to the specific tactile and structural properties of the fabric, ensuring a tight, uniform roll every time.

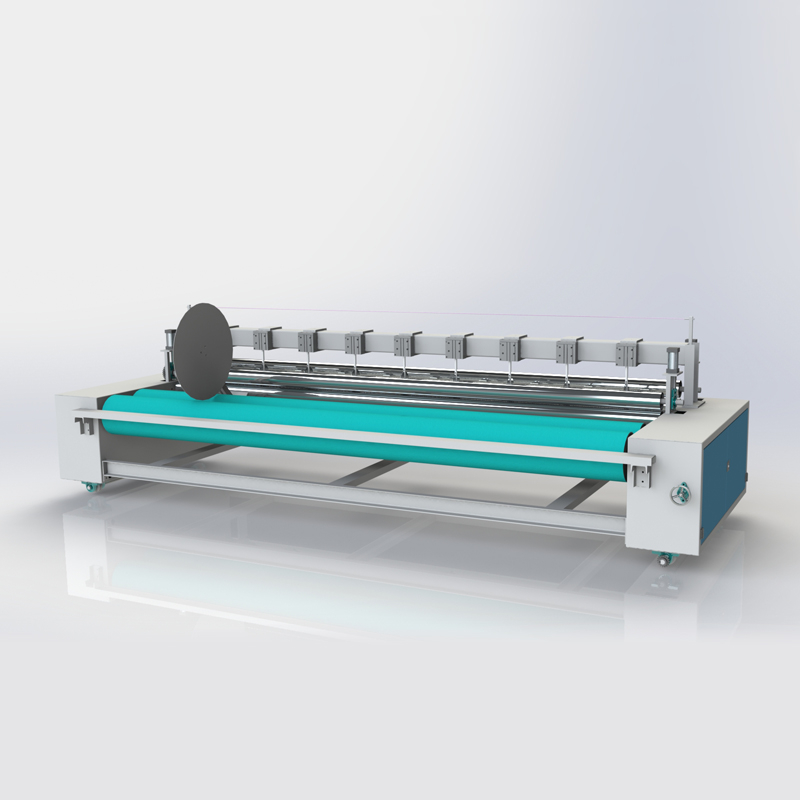

Ø It is suitable for non-woven trimming, coding, winding, and cross-cutting.
Ø Technical Data: Effective width:2800mm;
Roll Diameter:≤Φ1500mm;
Installed power: 2.2 kW for coiling, 0.55 kW for cross-cutting.
Ø Main components: winding rack, rolling roller, cutter, automatic length counting device, transmission parts.
Building upon the primary components detailed in the technical data, the winding rack and rolling rollers are constructed from heavy-duty, reinforced steel. This solid foundation actively absorbs mechanical vibration during high-speed continuous operation, ensuring that the structural integrity of the machine remains uncompromised over years of heavy use. The cutter mechanism utilizes wear-resistant, quick-change blades that slice through thick non-woven fabrics with a distinct, crisp shearing sound, leaving behind perfectly flat and unblemished edges. This precision prevents the microscopic tearing that often plagues lesser cutting systems.
An integrated automatic length counting device guarantees dimensional accuracy for every single roll, eliminating the need for manual measurement and significantly reducing the margin of error. The transmission parts are optimized with servo-driven wire arrangements, ensuring that the winding tension remains perfectly uniform from the inner core to the outer layer of the massive 1500mm diameter roll. This consistent tension prevents material telescoping, sagging, and wrinkling, which is absolutely vital for ensuring smooth downstream processing and packaging.
By utilizing internationally recognized brands for all core electrical and transmission elements, the equipment maintains long-term reliability even in harsh, dust-heavy industrial environments. The optimized mechanical design supports continuous, rapid running cycles, drastically cutting down on routine maintenance requirements and unexpected downtime. Facility operators will notice a marked decrease in mechanical wear and tear, translating directly to a lower total cost of ownership and higher overall equipment effectiveness.
Every production facility faces unique material handling challenges, and standard machinery often falls short of meeting highly specialized needs. To address specific operational requirements, this cutting and winding system offers extensive non-standard customization options. Whether a facility is dealing with unconventional material thicknesses, unique roll diameter constraints, or highly specialized tension requirements for delicate fabrics, the equipment's architecture can be tailored to match precise operational demands. The engineering team works closely with procurement and production managers to modify the winding mechanisms and cutting modules, ensuring the final build aligns perfectly with the intended application.
To ensure complete confidence before final implementation, comprehensive sample testing services are actively provided. Facilities are encouraged to send their specific non-woven or flexible materials for complimentary cutting and winding trials. This hands-on process allows the engineering team to calibrate the machinery to the exact tactile properties, stretch resistance, and tensile strength of the substrate. Clients receive detailed video reports and physical samples of the processed material, proving the machine's capability to deliver flawless results before any permanent installation occurs.
Beyond the physical machinery itself, a comprehensive framework of technical support ensures sustained operational excellence. The extensive service package includes:
Backed by this extensive support network, facilities can maintain peak production efficiency with the absolute assurance that expert diagnostic and mechanical assistance is always accessible.
