The cross lapper acts as the primary bottleneck in nonwoven web formation. Conveyance technology dictates maximum line speed and final product quality. Production engineers face a constant challenge on the factory floor. You must balance high-speed web profiling and low Coefficient of Variation (CV%) against equipment durability, maintenance downtime, and energy consumption. When the carding machine outputs web faster than the cross lapper layers it, the entire production line slows down. This limitation directly impacts facility throughput. Choosing between a carbon curtain and a steel apron requires a rigorous technical evaluation. You must analyze specific fiber types, target web weights, control system compatibility, and long-term operational demands. The physical mass of the conveyance system changes machine kinematics. We will explore how inertia, aerodynamic drag, and material tensile strength influence production metrics. This evaluation ensures your nonwoven line operates at peak efficiency without sacrificing web uniformity.
Speed vs. Mass: Carbon curtains excel in high-speed, low-inertia applications for lightweight webs, while steel aprons are engineered for heavy-duty, high-mass fiber processing.
Web Quality Control: Carbon systems minimize aerodynamic drag and static build-up, offering superior CV% control at high production speeds and rapid responsiveness to profiling algorithms.
Durability and Operational Costs: Steel aprons offer unmatched longevity and resistance to abrasive fibers, offsetting their higher energy consumption with lower replacement frequency and robust mechanical reliability.
Application-Specific ROI: The optimal choice depends strictly on the facility's product mix—fine denier hygiene products favor carbon, while geotextiles, heavy felts, and recycled materials demand steel.
Table of Contents
The apron or curtain directly controls web transfer, tension stability, and layer accuracy during cross lapping. Its material affects air turbulence, drafting risk, and response speed during carriage reversal. High-performance profiling requires a conveyance system that can quickly follow servo commands while maintaining constant tension, preventing edge thickening, folding, and uneven web distribution.
Cross lapper performance is measured by production speed, web uniformity (CV%), and machine reliability (MTBF). Operators should monitor reversal response time, edge waste, energy consumption, belt tracking issues, and maintenance requirements. Lightweight systems improve speed and precision, while heavier systems provide better durability in abrasive applications. The ideal selection depends on balancing quality requirements, operating conditions, and long-term maintenance costs.

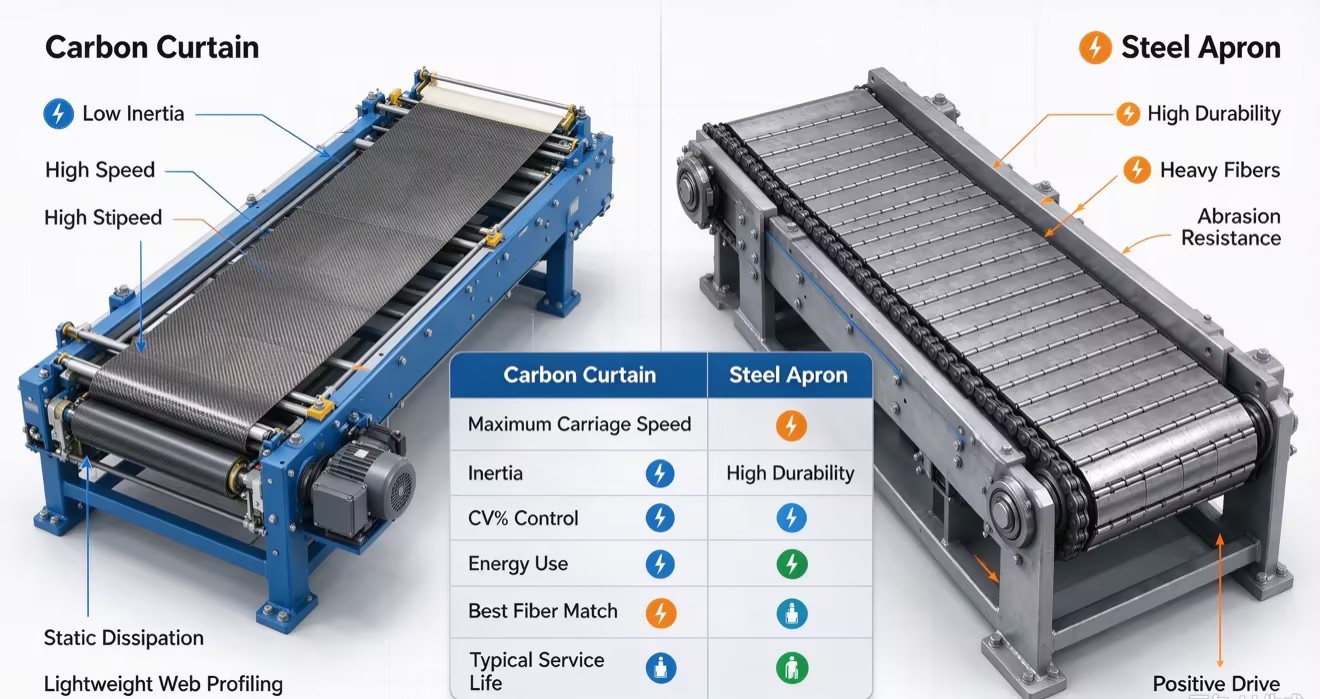

Carbon fiber reinforced curtains combine high tensile strength, low weight, and anti-static performance. Their composite structure, usually made from a carbon fiber matrix with a polymer coating, maintains dimensional stability during continuous flexing. The lightweight design reduces carriage mass, allowing servo systems to achieve rapid movement changes while minimizing static buildup and fiber adhesion.
The low inertia of carbon curtains enables faster reversal speeds, higher production rates, and more accurate web profiling. Reduced moving mass lowers vibration and improves synchronization with high-speed carding lines. Their smooth, low-drag surface also stabilizes lightweight webs, helping maintain low CV% and precise weight distribution across the batt width.
Carbon curtains offer high performance but require careful handling in abrasive environments. Coarse fibers, recycled materials, and sharp contaminants can damage the composite surface, while aggressive cleaning methods may cause micro-fractures. Proper cleaning procedures and regular inspections are essential to maintain curtain life and prevent unexpected failures.
The construction of a steel apron cross lapper involves interlocking steel slats or reinforced steel mesh. Manufacturers design these heavy-duty lattices for maximum structural integrity. The slats are typically stamped from galvanized or stainless steel and riveted to heavy-duty roller chains on either side. These chains run along hardened steel sprockets, providing a positive drive mechanism that eliminates any possibility of belt slip.
The drive requirements for this system are substantial. Higher torque motors and robust braking systems must manage the massive inertia of the steel components. The heavy lattice carries significant kinetic energy during continuous operation. The mechanical design utilizes heavy-duty track guides, oversized bearings, and reinforced drive chains. These components support the physical weight of the steel apron and prevent sagging across wide working widths. The steel slats often feature specialized surface treatments to resist oxidation and chemical corrosion from fiber finishes.
Steel aprons provide excellent durability for demanding applications such as geotextiles, automotive felts, and abrasive fiber processing. Their strong metal structure resists impact, wear, and aggressive cleaning methods. Even when processing recycled fibers or coarse materials, individual damaged slats can often be replaced instead of replacing the entire apron.
The high weight of steel aprons limits acceleration and reversal speed, making them less suitable for high-speed profiling applications. Higher inertia increases vibration, energy consumption, and mechanical stress on drives and tracks. The heavier structure also creates more noise and requires additional attention to operator ergonomics.
Carbon apron systems support higher operating speeds and faster response times, making them suitable for modern high-output carding lines. Their lightweight structure allows quicker carriage reversal and better synchronization with card speeds. Steel apron systems have lower speed limits due to higher inertia, which can restrict overall line capacity, especially in high-speed production.
Carbon curtains improve web uniformity by providing smoother fiber transport and more precise laydown control. Reduced aerodynamic disturbance helps maintain flat edges and stable weight distribution, lowering CV% and reducing trim waste. Steel aprons may create more turbulence and mechanical delay during reversal, which can increase thickness variation, especially in lightweight nonwoven products.
Selecting the right system requires analyzing your exact fiber mix. The physical properties of the fiber dictate the required conveyance material. You must match the abrasion resistance of the belt to the abrasiveness of the raw material.
Fiber Type / Characteristic | Carbon Curtain Suitability | Steel Apron Suitability | Primary Quality Risk |
|---|---|---|---|
Fine Denier Polyester & Viscose | Excellent (Prevents static and drafting) | Poor (Risk of air turbulence disruption) | Web drafting and static cling |
Lightweight Synthetics (Hygiene) | Excellent (High speed, precise CV%) | Poor (Too slow, potential edge folding) | Edge folding during reversal |
Coarse Polyester & Polypropylene | Moderate (Acceptable if non-abrasive) | Excellent (Handles high mass easily) | Surface scoring on carbon |
Recycled Shoddy & Natural Bast Fibers | Poor (High risk of surface scoring) | Excellent (Maximum abrasion resistance) | Catastrophic belt tearing |
Fiberglass & Heavy Abrasives | Not Recommended (Rapid degradation) | Excellent (Rugged structural integrity) | Complete matrix failure |
You must evaluate the carbon curtain vs steel apron cross lapper debate through the lens of long-term operational economics. Carbon curtains require more frequent replacement if subjected to suboptimal fiber mixes. However, their low mass significantly reduces daily energy consumption. The servomotors draw fewer amps to accelerate and brake the carriage. This reduction in electrical demand lowers your facility's Scope 2 carbon emissions over a 10-year lifecycle. Facilities operating in regions with high industrial electricity rates often see the energy savings offset the cost of replacement curtains.
Steel aprons present a different economic model. The replacement frequency is minimal. In abrasive applications, a steel apron can last for years without requiring a complete overhaul. However, the continuous energy draw required to move the heavy steel lattice increases monthly utility bills. The braking resistors on the servo drives must dissipate massive amounts of heat generated by the kinetic energy of the steel carriage. You must calculate whether the energy savings of carbon outweigh the rugged longevity of steel for your specific production volume.
Audit your current CV% data across all shifts to identify if carriage reversal speed causes edge thickening.
Analyze your primary fiber mix to determine the exact abrasion resistance required from the conveyance material.
Conduct pilot line trials with your specific fiber blend to empirically test web profiling accuracy before procurement.
Measure acoustic levels on the factory floor to ensure compliance with local occupational safety regulations.
Calculate the projected energy consumption difference based on your local utility rates and expected operating hours.
A: Carbon curtain systems routinely exceed operational speeds of 150 meters per minute due to their ultra-low mass. Steel apron systems generally operate below 100 meters per minute. The heavy mass of the steel requires longer deceleration and acceleration times during carriage reversal, strictly limiting maximum throughput.
A: It is highly discouraged. Steel aprons generate air turbulence between the metal slats during high-speed movement. This turbulence disrupts fine denier fibers, causing severe drafting and poor CV%. Additionally, steel systems cannot react fast enough to profiling software to maintain the precise edge control required for hygiene products.
A: High inertia delays the mechanical response to digital profiling commands. When the software commands a speed change to adjust edge thickness, a heavy steel apron lags, causing uneven fiber distribution. Low-inertia carbon systems react instantly, ensuring precise fiber placement and a consistently low CV% across the web.
A: No. Modern carbon curtains are engineered with inherent anti-static properties. The carbon composite material naturally dissipates electrical charges. This prevents synthetic fibers from clinging to the curtain, ensuring a smooth transfer to the floor apron without static-induced folding or drafting.
A: A steel apron can last over a decade even in harsh, abrasive environments like needlepunch geotextile production. A carbon curtain's lifespan depends heavily on the fiber type. While durable for fine fibers, processing abrasive recycled shoddy can degrade a carbon curtain in a matter of months, requiring costly replacement.
A: Steel aprons require frequent mechanical lubrication, track alignment, and tensioning, but they withstand aggressive scraping and harsh chemical cleaning. Carbon curtains require zero mechanical lubrication but demand delicate cleaning procedures. Abrasive tools will destroy the carbon matrix, so operators must use specific, non-abrasive solvents.
A: Carbon curtains are significantly more energy-efficient. Their low mass requires much less electrical current from the servomotors to accelerate and brake the carriage during continuous reversals. This lower kilowatt-hour consumption reduces overall facility energy costs and lowers Scope 2 emissions compared to driving heavy steel aprons.
