Material yield and web uniformity dictate profitability on the nonwoven manufacturing floor. Excess fiber deposition at the web edges directly translates to wasted raw material and compromised downstream processing. The inherent physics of layering equipment—specifically the deceleration and acceleration of the carriage at reversal points—naturally creates a "dog-bone" weight profile. This cross lapper edge buildup forces operators to increase edge trim, artificially inflating raw material costs and reducing overall line efficiency.
Resolving this requires moving beyond basic mechanical band-aids. This guide evaluates both operational adjustments and advanced kinematic profiling technologies required to flatten the cross-direction (CD) weight profile, minimize trim waste, and stabilize the nonwoven web for high-performance applications.
Kinematic Profiling is the Standard: Modern reduction of edge buildup relies on servo-driven carriage speed variations to deposit less fiber during reversal dwell times.
Upstream Quality Dictates Downstream Success: Card web uniformity and proper draft control are prerequisites; a cross lapper cannot fix a fundamentally uneven carded web.
ROI is Measured in Edge Trim Reduction: Justifying equipment upgrades or retrofits hinges on calculating the exact percentage of edge trim waste and the resulting raw material savings.
Closed-Loop Systems Mitigate Operator Error: Integrating inline weight scanners with the cross lapper’s control system provides real-time, automated profile correction.
Table of Contents
Understanding the mechanical limitations of traditional cross lapping establishes baseline success criteria for web uniformity. A standard mechanical layering system operates on a continuous loop of aprons that transport a delicate carded web and fold it onto a floor apron moving at a 90-degree angle. The primary goal is to build up the final fabric weight (GSM) and width. The physical movement required to achieve this folding action introduces inherent inconsistencies. Identifying exactly where and how these inconsistencies occur allows production teams to target the root cause rather than treating the symptoms.
The core issue stems from the mechanics of the layering carriage. As the carriage sweeps across the width of the floor apron, it must eventually stop and reverse direction. This mechanical sequence creates a bottleneck in fiber distribution. The process unfolds in a specific sequence:
The carriage approaches the designated edge width at full operational speed.
The drive system initiates deceleration to bring the carriage mass to a complete halt.
The carriage reaches zero velocity for a fraction of a second at the reversal point.
The drive system accelerates the carriage back in the opposite direction.
The carriage regains full operational speed as it moves toward the center of the floor apron.
During this split-second mechanical transition, the carriage spends more time over the edges of the web than it does over the center. We refer to this as dwell time. Because the carding machine upstream continues to feed the web at a constant velocity, this extended dwell time at the reversal points forces the equipment to deposit excess fiber at the edges.

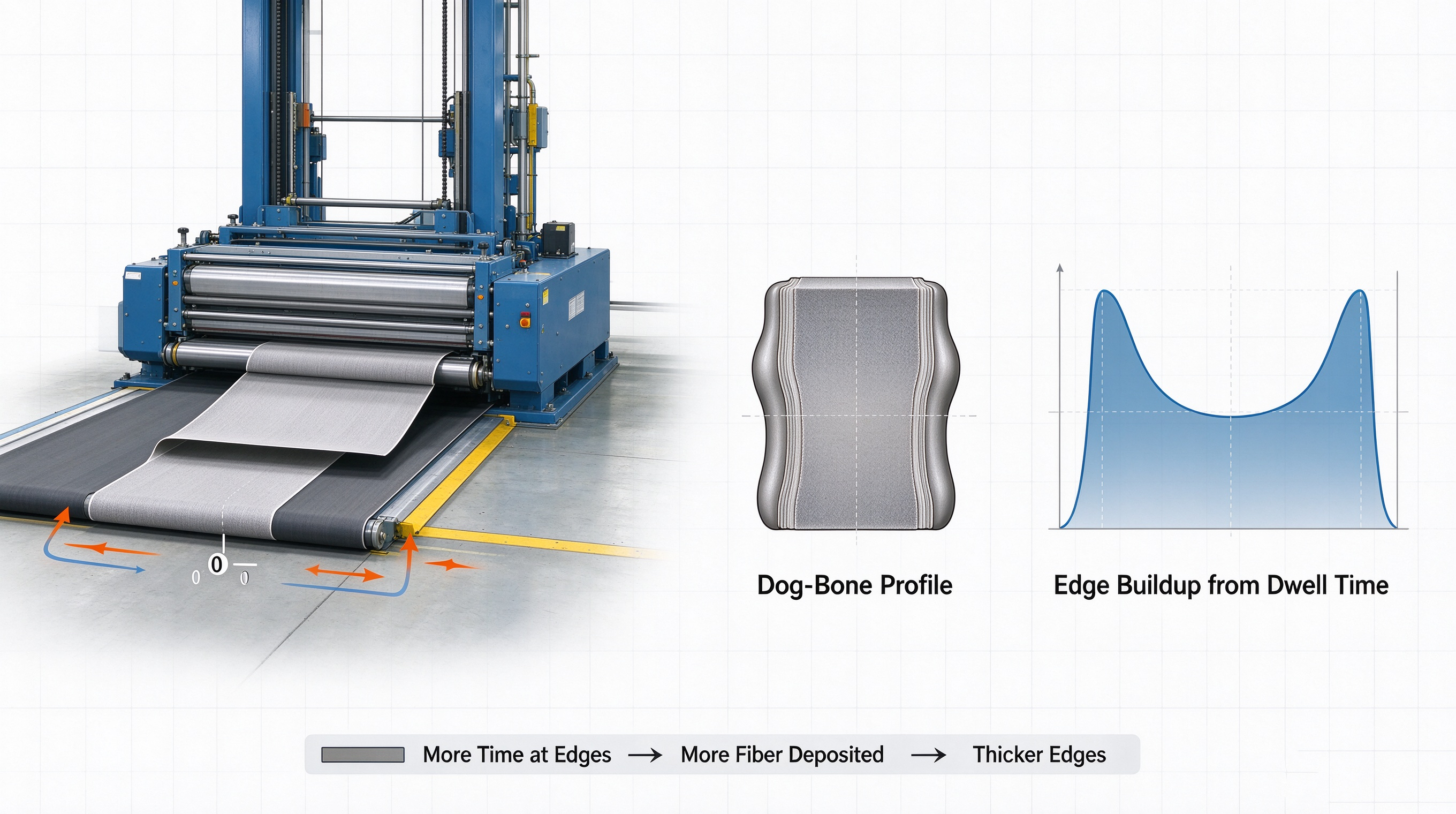

This uneven fiber deposition results in a distinct cross-section commonly known as the "dog-bone" profile. If you slice the layered web and view it from the end, the center appears relatively flat and uniform, while both edges bulge significantly thicker. This physical distortion heavily skews the Coefficient of Variation (CV%) in the cross-direction (CD). A high CD CV% indicates poor weight distribution. Operators often attempt to fix this by increasing the total web weight to ensure the center meets minimum specifications. This operational habit only further exacerbates the heavy edges and wastes more raw material.
Mechanical dwell time is not the only variable. At high production speeds, aerodynamic forces heavily influence fiber placement. The rapid movement of the carriages generates turbulent air currents that can lift and fold the lightweight carded web just before it hits the floor apron. These air currents peak in turbulence at the edges where the carriage reverses. Apron tension also fluctuates slightly during these rapid directional changes. Minor slack in the carbon or PVC aprons causes the web to slip or bunch up, compounding the fiber accumulation at the edges.
You must quantify the problem before implementing any solution. Relying on visual inspections or rough estimates of edge thickness fails to provide the data needed for process optimization. Facilities need strict, measurable evaluation dimensions to determine the severity of their edge buildup and to track the effectiveness of corrective actions. This involves establishing baseline metrics for weight distribution, calculating exact waste percentages, and monitoring secondary defects downstream.
The most critical metric for web uniformity is the Cross-Direction Coefficient of Variation (CD CV%). This measures the statistical dispersion of the web's basis weight across its entire width. To calculate this accurately, operators must take multiple physical samples across the web or rely on inline scanning gauges. Strict tolerances are mandatory for advanced applications. In medical textiles and spunlace wipes, severe edge buildup alters fiber geometry. This compromises both tensile strength and fluid absorbency. If the CD CV% exceeds acceptable limits, the final product will fail quality assurance testing.
Nonwoven Application | Acceptable CD CV% Target | Impact of Severe Edge Buildup |
|---|---|---|
Medical Textiles (Gowns, Drapes) | < 2.0% | Compromised fluid barrier, weak seam strength, failed hydrostatic head tests. |
Spunlace Wipes | < 3.0% | Inconsistent fluid retention, uneven wiping performance, poor lotion distribution. |
Automotive Felts | < 4.0% | Poor acoustic insulation, molding and shaping defects during thermoforming. |
Geotextiles | < 5.0% | Localized stress failures under heavy soil loads, uneven water permeability. |
Edge trim is a necessary reality in nonwoven manufacturing, but excessive trim destroys profitability. To calculate edge trim waste, measure the current trim width on both sides of the web and compare it against the absolute minimum target width required for clean edges. Calculate the annual cost of this wasted fiber. Even if the trimmed fiber is recycled back into the blending line, the energy, labor, and machine time spent processing that fiber the first time are permanently lost. For high-value fibers like aramid, carbon, or specialized bicomponents, this financial loss scales rapidly.
Edge buildup rarely isolates itself to the layering stage; it creates a cascade of secondary metrics that must be tracked. In needlepunch lines, track the rate of needle breakage specifically at the outer edges of the loom. In thermobonding ovens, monitor for uneven bonding where the dense edges fail to reach the required core temperature while the center over-bonds. In coating applications, track inconsistencies in chemical pickup. Tying these downstream defects directly to the cross-direction profile provides a complete picture of the problem and helps justify capital expenditures for upgrades.
For facilities operating legacy equipment without advanced profiling software, immediate mitigation relies on low-capex mechanical and operational adjustments. While these adjustments cannot defy the physics of carriage dwell time, they prevent the problem from worsening. These solutions focus on optimizing web handling, controlling tension, and managing the aerodynamic environment inside the machine.
Consistent tension across the entire width of the aprons is non-negotiable. Uneven tensioning at the apron rollers leads to localized web slippage. When the web slips during the high-speed reversal of the carriage, it folds over itself, drastically exacerbating distortion at the edges. Maintenance teams must regularly check the tracking guides and pneumatic tensioning cylinders. The aprons must remain perfectly flat and taut. Any stretching, edge fraying, or degradation in the apron material requires immediate replacement to maintain absolute web control.
Draft control is a delicate balancing act on the production floor. Operators must manage the speed ratios between the card doffer, the infeed aprons, and the floor apron. Maintaining a slight draft (tension) keeps the web flat and prevents sagging between transfer points. Excessive draft tears the delicate web, while too much overfeed causes it to buckle and fold. Fine-tuning these speeds ensures the web enters the layering zone smoothly. Proper draft management minimizes the erratic fiber bunching that often occurs right at the reversal points.
Some legacy systems utilize physical constraints to control fiber placement. Mechanical edge guides and aerodynamic baffles help manage the turbulent air flow generated by the moving carriages. By directing the air currents away from the web edges, baffles reduce the likelihood of the web flipping or folding. Physical edge guides come with significant limitations. Any physical contact with the moving web risks snagging fibers, generating static electricity, and creating entirely new defects. Use physical guides cautiously and maintain them meticulously to avoid unintended web damage.
To truly eliminate the dog-bone profile, manufacturers must invest in high-capex, high-ROI technological interventions. These modern solutions address the root cause of the problem: carriage dwell time. By manipulating the kinematics of the machine and integrating real-time quality control data, these technologies provide precise weight distribution across the entire width of the web.
The most effective method for reducing edge buildup is servo-driven kinematic profiling. In modern systems, independent servo motors control the upper and lower carriages. This allows the programmable logic controller (PLC) to intentionally alter the speed of the carriage as it moves across the web. The Cross Lapper accelerates precisely as it approaches the reversal point. By speeding up during the turn, the machine deposits less fiber at the edges, effectively neutralizing the dwell time and flattening the final web profile.
Kinematic profiling reaches its full potential when paired with a closed-loop weight control system. This setup integrates an inline basis weight scanner—typically an X-ray or beta gauge—positioned downstream after the bonding stage. The scanner continuously measures the cross-direction profile and feeds this real-time data back to the PLC. If the scanner detects the edges getting too heavy, the system automatically adjusts the servo speeds to correct the profile. This automated intervention eliminates operator guesswork and ensures consistent quality roll after roll.
Different fibers behave differently under high-speed layering conditions. A kinematic speed profile that perfectly flattens a heavy PET web might cause thin edges on a lightweight viscose web. Modern profiling technologies include recipe management software accessible via the Human Machine Interface (HMI). Operators save specific kinematic curves, draft ratios, and apron speeds for every unique product they run. When changing products, the operator simply loads the recipe. This drastically reduces changeover scrap and ensures the machine hits target specifications immediately upon startup.
The consequences of a poor cross-direction profile extend far beyond the layering process. Edge buildup creates a cascading effect that degrades final product quality, accelerates machine wear, and disrupts secondary finishing operations. Understanding these downstream impacts is critical for justifying investments in profiling technology and maintaining overall plant efficiency.
In needlepunch applications, heavy edges wreak havoc on the loom. The barbed needles are designed to penetrate a specific density of fiber. When they strike dense, heavy edges, they encounter extreme resistance. This causes uneven needle penetration and severe needle deflection. The result is a dramatic increase in needle wear and frequent breakages at the outer edges of the needle board. The dense edges draft differently than the thinner center as the web pulls through the loom, causing localized distortions and inconsistent tensile strength across the fabric width.
Spunlace lines rely on high-pressure water jets to entangle fibers. Water pressure distribution must remain perfectly even. When a web with heavy edges passes under the manifolds, the water jets strike a denser mass of fiber at the edges and a thinner mass in the center. This leads to over-entangled, rigid edges and an under-entangled, weak center. This inconsistency compromises the unique fiber geometry required for high-strength wipes, resulting in a product that performs poorly during consumer use and fails basic quality checks.
Secondary finishing processes are highly sensitive to thickness variations. During padding or coating, the web passes through heavy nip rollers. If the edges are significantly thicker than the center, the nip rollers pinch the edges tightly but fail to apply adequate pressure to the center of the web. This causes uneven chemical pickup, resulting in inconsistent dyeing, poor flame retardancy, or weak adhesive application. In composite nonwovens, this lack of uniform pressure creates high risks of delamination between the layers.
The final stages of production—calendering and winding—magnify edge buildup issues. Thick edges passing through a heated calender roll bond differently than the center, creating stiff, brittle margins. When winding the final master roll, these thick edges stack on top of each other layer after layer. This creates hard bands at the ends of the roll while the center remains soft and spongy. Hard bands cause the roll to telescope, making it unstable for storage and incredibly difficult to slit accurately during converting operations.
Cross lapper edge buildup is an inherent physical challenge that cannot be entirely eliminated through mechanical tweaks alone. Achieving a flat CD profile requires kinematic speed profiling. Facilities running high-margin or lightweight nonwovens must prioritize closed-loop, servo-driven profiling to protect their profitability. Facilities running heavy industrial felts may temporarily rely on optimized draft and tension controls, but eventually, the cost of wasted edge trim forces an upgrade. To move forward effectively, execute the following steps:
Conduct a comprehensive audit of your current CD CV% across all product lines using physical sampling or inline scanner data.
Measure exact edge trim waste and calculate the annualized financial loss in raw materials.
Inspect current apron tension, tracking guides, and draft ratios to establish a stable mechanical baseline before attempting software upgrades.
Build an ROI model comparing the cost of wasted fiber against the capital expenditure of a profiling upgrade.
Consult with tier-one nonwoven equipment manufacturers to evaluate the feasibility of retrofitting your existing frames versus full replacement.
A: The carriage decelerates to reverse direction and accelerates back across the floor apron. This extended dwell time at the edges deposits more carded web than in the center. Because the upstream carding machine feeds fiber at a constant rate, the physical pause at the reversal points naturally creates thicker, heavier edges compared to the flat center profile.
A: Kinematic profiling utilizes servo motors to dynamically alter the carriage speed. By intentionally accelerating the carriage precisely at the reversal points, the machine deposits less fiber at the edges. This speed variation compensates for the directional change, effectively neutralizing the dwell time and flattening the final web weight profile across the entire width.
A: Proper apron tension prevents web slippage and folding, which exacerbate edge distortion. However, tension adjustments alone cannot overcome the physical dwell time caused by carriage reversal. Maintaining taut, well-tracked aprons is a prerequisite for stable web handling, but it serves as a baseline operational standard rather than a complete cure for heavy edges.
A: A closed-loop system integrates a basis weight scanner downstream to measure the cross-direction weight profile in real-time. It feeds this continuous data back to the programmable logic controller. The system then automatically adjusts the servo-driven carriage speeds to correct emerging edge buildup or thin spots without requiring manual operator intervention.
A: Thick edges create uneven pressure when the web passes through nip rollers. This leads to inconsistent chemical pickup during padding or coating operations. In composite nonwovens, the lack of uniform pressure across the width causes severe delamination issues when attempting to bond multiple web layers together securely.
A: Heavy edges force barbed needles to penetrate a significantly denser fiber mass than intended. This resistance leads to uneven web drafting through the loom, accelerated needle wear, and frequent needle breakage. Ultimately, it produces a fabric with inconsistent tensile strength and varying density across its width.
A: Yes, operators can retrofit some legacy mechanical frames with servo motors and updated control systems. However, the existing mechanical frame and bearings must possess the structural rigidity to handle the rapid acceleration and deceleration demanded by modern profiling software. Weak frames will suffer severe vibration and premature mechanical failure.
