Poor synchronization in nonwoven manufacturing directly impacts line profitability. Minor speed discrepancies between machine centers cause immediate material waste, inconsistent web weights, severe edge distortion, and costly line stoppages. The core problem lies in the mechanical and control challenges of maintaining continuous web tension. You must ensure uniform mass distribution as delicate fibers transition through the line. The material moves from the continuous output of the carding machine, passes through the reciprocating action of the lapper, and enters the intermittent drafting zone of the needle loom. This technical evaluation guide helps plant engineers and operations managers upgrade drive systems and implement closed-loop controls. We detail how to specify new equipment to achieve precise cross lapper speed matching. These steps will help you optimize overall line efficiency and product quality.
Precision Drives Dictate Quality: Upgrading from mechanical linkages or open-loop VFDs to multi-axis servo systems is the baseline for achieving dynamic speed matching and reducing the Coefficient of Variation (CV%).
Tension Control is Non-Negotiable: Effective synchronization requires active draft management at both the card-to-lapper infeed and the lapper-to-loom outfeed to prevent web stretching, folding, or tearing.
Software Profiling Drives ROI: Modern speed matching isn't just about matching linear speeds; it involves kinematic profiling to manage carriage deceleration/acceleration, directly impacting edge thickness and material savings.
Integration Reduces Latency: Evaluating solutions requires auditing the communication protocols (e.g., EtherCAT, PROFINET) between the card, cross lapper, and needle loom PLCs to eliminate signal latency during ramp-up and ramp-down phases.
Material-Specific Tuning is Essential: Speed matching parameters must be adaptable to different fiber types (e.g., long staple synthetics vs. delicate recycled fibers), as varying web cohesion levels dictate the allowable tension tolerances between machine centers.
Table of Contents

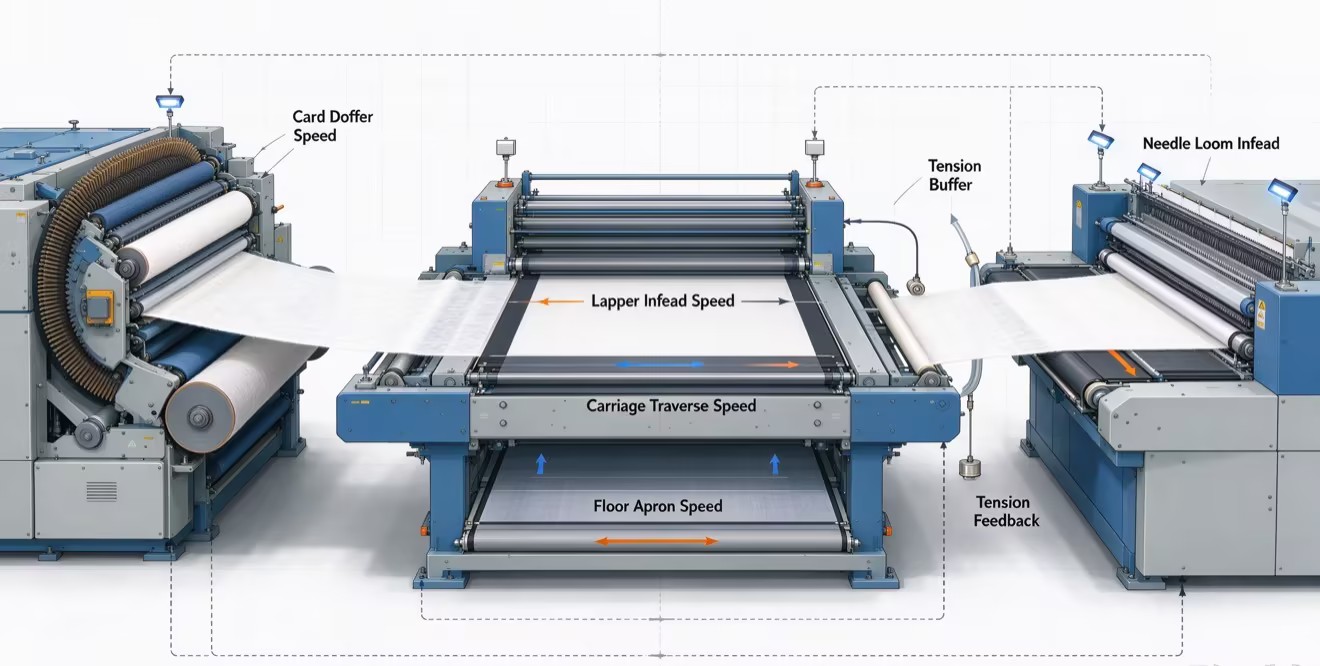

The transfer from carding machine to cross lapper requires precise speed matching to protect web structure. Even small speed differences can cause drafting, fiber accumulation, or uneven weight distribution. Synthetic fibers require tighter control because they have lower cohesion and stretch easily under tension. Vacuum-assisted infeed systems and PLC-based recipe control help stabilize the web transfer at high speeds.
Cross lapper carriage movement must balance high speed with precise web placement. Rapid acceleration and reversal create large mechanical forces that can affect overlap patterns and basis weight uniformity. Modern servo systems use optimized speed curves to smooth movement, reduce vibration, and compensate for edge buildup during reversing, producing a more consistent web profile.
The connection between cross lapper and needle loom requires careful tension management. Because the needle loom operates with intermittent feeding, the lapper must absorb speed fluctuations without stretching or compressing the batt. Buffer systems such as dancer rollers or accumulation loops provide real-time tension control, preventing thin spots, wrinkles, and needle damage.
Environmental conditions strongly influence web transfer stability, especially when processing synthetic fibers. Static electricity can cause fiber sticking, uneven transfer, and machine stoppages. Active ionizing bars and controlled humidity levels help maintain consistent fiber behavior. Stable temperature and humidity conditions allow tighter speed synchronization and more reliable production quality.
Traditional mechanical drives rely on shafts, belts, and gearboxes, which suffer from wear, backlash, and slow response. These limitations make precise speed synchronization difficult at high production speeds. Multi-axis servo systems replace mechanical connections with electronic synchronization, allowing independent control of each section through a virtual master axis. Closed-loop feedback enables instant speed correction, improves web uniformity, and supports energy recovery through regenerative braking.
System Component | Legacy Mechanical System | Multi-Axis Servo System |
|---|---|---|
Power Transmission | Shafts, belts, chains, gearboxes | Servo motors with direct drive or low-backlash gears |
Synchronization | Mechanical gearing | Electronic virtual master axis |
Feedback | Limited encoder feedback | High-resolution absolute encoders |
Load Response | Slow adjustment and mechanical backlash | Instant torque compensation |
Maintenance | Regular lubrication and mechanical adjustment | Software diagnostics and reduced wear |
Stable web tension is essential for defect-free production. Sensors such as load cells, laser systems, and dancer rollers provide real-time feedback to adjust motor speeds automatically. Accumulators act as buffers during speed changes or temporary line mismatches, while dancer rollers absorb sudden tension fluctuations. Together, these systems maintain continuous material flow and prevent web breaks.
Advanced profiling software improves web uniformity by adjusting carriage speed during movement and reversal points. It compensates for natural edge thickening caused by carriage deceleration, reducing the dog-bone effect. By synchronizing carding, lapping, and bonding equipment, the system maintains consistent basis weight, reduces edge trimming, and improves material yield.
Modern servo systems continuously collect operating data such as torque, speed, vibration, and temperature. These signals help identify early signs of bearing wear, belt problems, or synchronization errors before major failures occur. Integrated SCADA monitoring and predictive maintenance tools reduce downtime, improve reliability, and allow maintenance based on actual machine condition rather than fixed schedules.
Lowering CV% is a key indicator of improved web uniformity and equipment ROI. Precise speed synchronization reduces weight variation, minimizes material overfeeding, and allows production closer to the minimum specification. This reduces fiber consumption and lowers rejection rates, creating significant savings, especially when processing expensive synthetic fibers.
Higher production speeds require stronger servo systems and mechanical structures to handle increased reversal forces and vibration. Advanced drives, lightweight carriages, and high-performance control systems provide the torque, stability, and flexibility needed for future speed upgrades without major equipment replacement.
Modern lapping systems must integrate seamlessly with existing PLC and SCADA networks. High-speed communication protocols enable synchronized control, centralized recipe management, and automated safety functions. Proper integration improves production consistency, reduces setup errors, and ensures safe operation across the entire line.
Advanced servo systems and profiling upgrades require higher upfront investment, but they reduce long-term costs through lower fiber waste, faster changeovers, and reduced downtime. By improving weight control and production stability, these systems can recover their investment through material savings and higher equipment efficiency.
Modern servo-driven systems reduce mechanical maintenance but require stronger electrical, software, and diagnostic skills. Operators and technicians must be trained in PLC systems, sensors, and drive controls to fully utilize the equipment and avoid production losses caused by incorrect settings.
Flexible control systems allow manufacturers to process more fiber types and optimize different products, but they increase programming complexity. User-friendly HMI systems, parameter limits, and access controls are essential to prevent operating errors while maintaining production flexibility.
Precise speed matching remains the absolute linchpin of nonwoven web quality. Closed-loop servo synchronization is the only viable standard for modern, competitive production facilities. Relying on outdated mechanical linkages guarantees material waste and limits your line speed. You must take proactive steps to evaluate and upgrade your current control systems.
Audit your current cross-directional (CD) and machine-directional (MD) CV% to establish a performance baseline.
Map your existing network latency to identify communication bottlenecks between machine centers.
Determine if a targeted drive retrofit or a full machine replacement makes the most financial sense.
Engage with specialized nonwoven OEM integrators to request a comprehensive line audit.
Calculate your projected fiber savings based on improved speed matching tolerances to justify the CapEx.
A: It is the electronic and mechanical synchronization of speeds between the carding machine, the internal belts and carriage of the lapper, and the needle loom. This synchronization maintains consistent web tension and uniform basis weight throughout the entire production process.
A: The relationship between the infeed speed, carriage traverse speed, and outfeed speed determines the number of folds. This precise overlapping ratio directly dictates the final basis weight and thickness of the nonwoven batt.
A: A speed mismatch causes the delicate carded web to either stretch and break under tension, or slacken and fold over itself. Both scenarios ruin the web structure before it even enters the lapping process.
A: The continuous output of the lapper must perfectly match the intermittent, stop-and-go nature of the needle loom's feed rollers. If the speeds do not match, the unbonded batt stretches, destroying the fiber orientation.
A: Different fibers have varying levels of natural cohesion. Short recycled fibers behave differently than long synthetics. Operators must adjust tension tolerances and speed differentials specifically for each blend to prevent web breakage.
A: Yes, retrofitting is feasible. However, the mechanical frame, bearings, and belts must be robust enough to handle the increased dynamic response and higher inertial loads generated by modern servo motors.
